45KW 380V Intelligent AC Load Bank Automatic With Local Manual Control

45KW 380V Adjustable AC Dummy Load bank :

1. Premium components
2. Durable and reliable
3. Easy to transport

Load bank is a simulating load test equipment used for generators, UPS, battery banks etc power systems load test.

Product Description:

1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.

2. Rated testing voltage: 380VAC 3P4W, 380V 50Hz.
3. Cooling mode: Forced air-cooled
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
5. Load bank features world-famous components to ensure reliable performance and longer service life including: contactors, knobs and indicators,Circuit breakers,intermediate relays,terminal blocks
6. Parameter measuring accuracy grade: 0.5.
7. Load control accuracy: 5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A) Local manual control;
B) Optional: Manual control via a remote control panel
10. Parameter display and measurement:
Control panel contains Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "

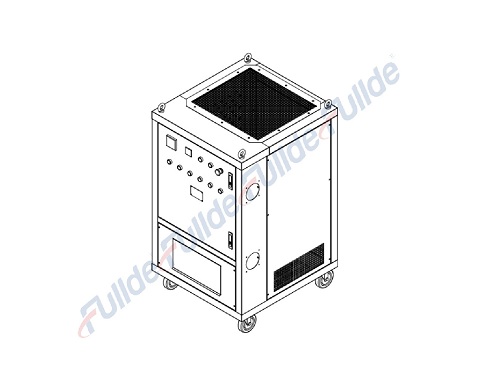

Detailed Pictures of Load Bank:
