4KW Portable Resistive Load Bank / Suitcase Load Bank For PV System Testing

Ask Lasest Price
Brand Name :	Fullde
Model Number :	LB-4KW-380VAC-J
Certification :	CE, ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	300 Sets per Month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

4KW Portable Resistive Load Bank / Suitcase Load Bank For PV System Testing

4KW Portable Electrical Battery Rack-mounted Load Bank in Data Center

This unit specially designed for UPS data center, it's safe, reliable, small volume and can simulate the on-site server load.
Constant power, the unit is Fullde self-developed electric power load simulation equipment.

Technical Parameters

Specification:

Rating voltage	380VAC
Total Power	4kW
Power step	500W,500W,1W,2W, in total 4steps or free combination
Power Factor	1
Load Tolerance	±3%
Auxiliary power	220VAC/50Hz
Insulation Grade	Grade F
Way of Working	Continuous Working
Cooling	Forced air cooling, intake air in front and exhaust cooling in back
Case Color	Black
Case Dimension	About 350600450(mm)
Weight	About 25kgs
Protection level	IP20 (Inside)

Main Functions:

(1) Load Bank Testing: User could load any power within rated power to test the output performance of generator set.

(2) Control Mode: Control inside contractor by the panel button.

(3) Over-heat protection: There will be sound-light alarm when temperature is over safety thresholds.

Why need load bank testing?

It is really critical to ensure that your standby power supply system say UPS(uninterrupted power supply), battery bank, generator, transformers, inverter etc which especially located in harsh, dusty or corrosive environment working in good condition, when you need them most, if switched to be loaded when the main power supply in maintenance procedure or stop abnormally.
The load bank testing offers you whole solutions of predictive failure analysis for UPS(uninterrupted power supply), generator, transformers, PV system, inverter etc, to validate the condition and output of such power systems comprehensively.

Rack Load Bank Selection Table

Specification	Capacity&Step	Power Factor	Voltage	Dimension (LWH)	(KG)
LB-4KW-AC220V	4KW,Steps 500W	1	AC220V	477(485)177500 4U	12
LB-6KW-AC220V	6KW,Steps 500W	1	AC220V	477(485)177500 4U	14
LB-10KW-AC220V	10KW,Steps 500W	1	AC220V	477(485)265500 4U	20
LBS-4KW-AC220V	4KW,Steps 500W	1	Wide voltage 180-260V (AC/DC)	477(485)177500 4U	10

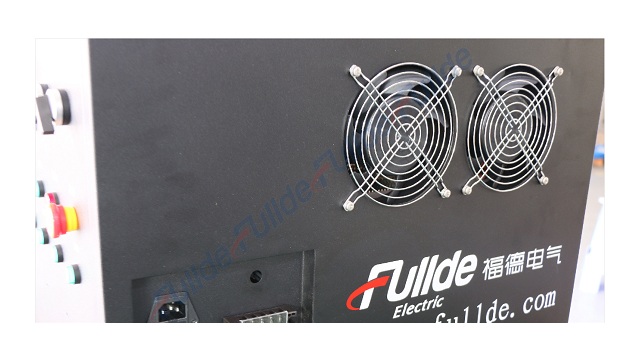

Detailed Pictures of Load Bank:
