    400V AC Load Testing Equipment , Portable Reactive Load Bank With Indicators

    Ask Lasest Price
    Brand Name : Fullde
    Model Number : LB-30kvar-400VAC
    Certification : CE, ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Sets per Month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    400V AC Load Testing Equipment , Portable Reactive Load Bank With Indicators

    400VAC Durable Variable Reactive Dry Load Bank for Portable Generator Test


    Specifications


    30Kvar-AC400V Load Bank for Generator Load Test:

    1.Premium components

    2.Durable and reliable

    3.Easy to transport


    Load bank is a simulating load test equipment used for generators, UPS, battery banks etc power systems load test.


    1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.
    2. Rated testing voltage: 400-1000VAC
    3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally.
    4. Working mode: Load step control
    400VAC, 400Hz: 1kvar, 2kvar,2kvar,5kvar,10kvar,10kvar, in total 6 steps, 30kvar.any load combination is achievable.
    5. Load bank featuresworld-famous components to ensure reliable performance and longer service life including:contactors, knobs and indicators,Circuit breakers,intermediate relays,terminal blocks
    6. Insulation Grade: F
    7. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
    8. Parameter display and measurement:
    Control panel contains Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
    (Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "
    9. Protection Grade: IP23

    10. Altitude:2500meters

    Any question, please contact me directly.

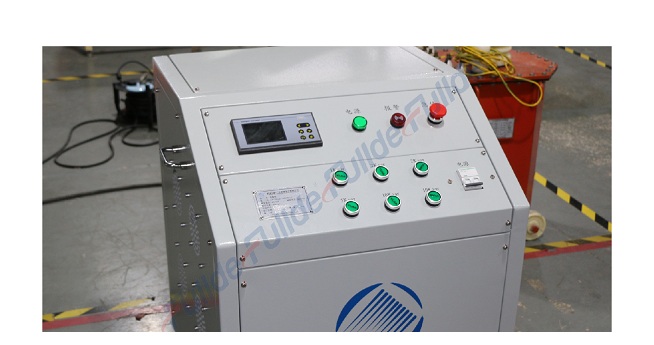

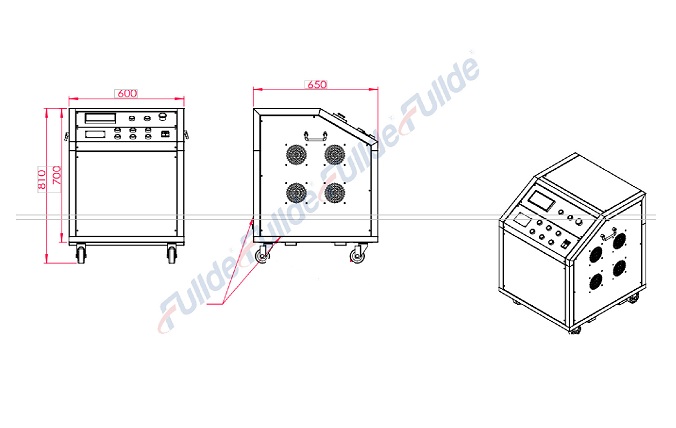

    Detailed Pictures of Load Bank:Durable Variable Resistive Load Bank for Portable University Laboratory TestDurable Variable Resistive Load Bank for Portable University Laboratory TestDurable Variable Resistive Load Bank for Portable University Laboratory Test
